Quick overview

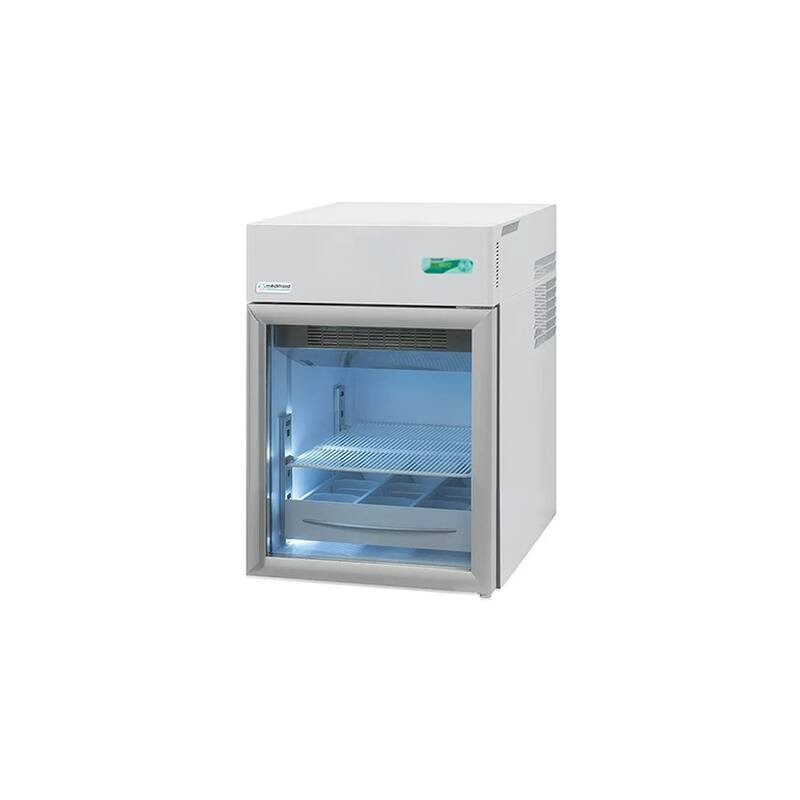

MFG100 Refrigerated Medical Cabinet
The MFG100 refrigerated medical cabinet is designed for storing temperature-sensitive medications according to their intended use. Its interior and exterior are made of steel with an antibacterial coating.The coating has been tested against Staphylococcus aureus, Escherichia coli, and Klebsiella pneumoniae bacteria.Control and MonitoringThe MFG100 is equipped with an electronic control unit for continuous temperature recording.It includes visual and audible alarms that signal temperature variations, as well as an external electronic thermostat for temperature control.The unit also features an electronic locking system, remote alarm contacts, and a diagnostic function.FeaturesThe MFG100 includes a ventilated refrigeration system using refrigerant R134a, automatic defrosting, interior LED lighting, a glass door and the Night & Day.The configuration can be expanded, as needed, with up to three drawers or two optional shelves.Technical SpecificationsNet Volume: 126 LFan-assisted coolingExternal electronic thermostatContinuous temperature recordingVisual and audible alarmsElectronic door lockRemote alarm contactsDiagnostic functionAutomatic defrostInterior LED lightingGlass doorNight & Day The MFG100 is designed for freestanding installation. The ventilation distances indicated in the user manual must be observed.Installation
Product reference
MFG100
Type of product
MEDICAL CABINET
Storage category
Medicine storage
Product color
White
Net volume (L)
96
Net weight (kg)
53.0
Net dimensions (WxDxH) (cm)
52.0 x 63.5 x 71.0
Net volume (L)
0-99
Net depth (cm)
60-69
Net width (cm)
0-59
Net height (cm)
0-89
Internal dimensions (WxDxH) (cm)
44.0 x 51.6 x 42.1
Position of control panel
Exterior
Shelf dimensions (mm)
400 x 500
Drawer dimensions (mm)
100 x 450 x 75 mm
foot height (cm)
1.5
Number of drawers included
0
max number of drawers
1
Number of shelves included
0
Maximum number of shelves
2
Number of feet
4
Type of shelves
Shelf / rack
Number of door
1
Type of door
Glass
Light
1
Light source
LED
Temperature range
2°C - 15°C
user interface
Yes
Lock
Yes
Noise level (dB)
39
Type of gas
R290
List of compatible references
8861
8859
8863
8827
8859
8863
8827
thickness of sidewall insulation
40
thickness of background insulation
40
