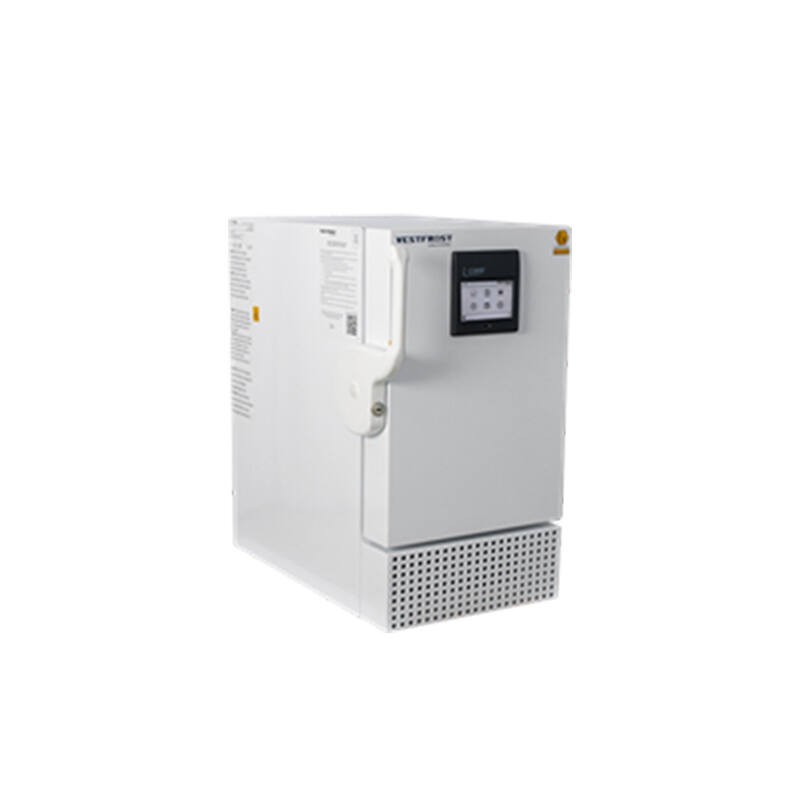

MFZ007-86A Laboratory Medical Freezer

The MFZ007-86A is an ultra-low temperature biomedical mini freezer designed for storing temperature-sensitive samples. It offers a net capacity of 7 liters and an adjustable temperature range of -20°C to -86°C, making it suitable for laboratories, healthcare facilities, and research centers with limited space.

Features and Functionality

This model is equipped with a variable speed compressor and uses a natural refrigerant (R2). Its 120 mm insulation helps maintain the operating temperature.The i-Care controller with touchscreen allows for temperature setting and display, viewing historical data as a graph, and recording and exporting data via USB. The appliance includes audible and visual alarms for high or low temperature, probe failure, open door, or power outage.ComplianceThe freezer complies with DIN13277 - DX15140 and ATEX standards. It is equipped with a dry contact for connection to a monitoring system and a 20 mm probe pass-through for installing external sensors.

Technical Specifications

The MFZ007-86A has a temperature range of -20°C to -86°C, a uniformity of ±2.5°C, and reaches -75°C in 132 minutes. Its energy consumption is 2.94 kWh/24 h at -80 °C (1073 kWh/year) and its noise level is less than 48 dB.

Its construction includes a painted steel exterior and a stainless steel interior.

Technical Specifications

• Volume: 7 liters
• Temperature range: -20 °C to -86 °C
• Reference temperature: -80 °C | Uniformity: ±2.5 °C
• Descent time: 132 min to -75 °C
• Consumption: 2.94 kWh/24 h at -80 °C | 1073 kWh/year
• Noise level: <48 dB
• Refrigerant: Nature R - 2 circuits, 109 g
• External dimensions: 732 × 457 × 650 mm
• Internal dimensions: 310 × 150 × 145 mm
• Controller: i-Care touchscreen with curved display and USB port
• Alarms: temperature, door, probe, power supply
• Compliance: DIN13277 - DX15140 | ATEX

Other options available

The MFZ007-86A can be used alone or in conjunction with other models in the range. For any inquiries regarding other capacities or configurations, please contact our team.
